Specifications:




P/N: EPL-005-0001
LED Inspection Lamp

Name
Base Type
Wattage
LED Qty
PCB
Voltage
THD
PF
Size (mm)
Cover
Color
Beam Angle
Luminous
Lifetime

: LED Inspection Lamp
: G10Q
: 8W
: 144
: Aluminum PCB
: 24Vdc, Option: 100-240 Vac
: <15%
: 0.96
: D205 x 30mm
: Milky
: CW (6500K)
: 120
: 700-1000lux at 0.5m
: 35,000 Hours



Specifications:





P/N: EPL-005-0002
LED Inspection Lamp

Name
Base Type
Wattage
LED Qty
PCB
Voltage
THD
PF
Size (mm)
Cover
Color
Beam Angle
Luminous
Lifetime

: LED Inspection Lamp
: G10Q
: 8W
: 144
: Aluminum PCB
: 24Vdc, Option: 100-240 Vac
: <15%
: 0.96
: D205 x 30mm
: Milky
: NW (4000K)
: 120
: 600-900lux at 0.5m
: 35,000 Hours

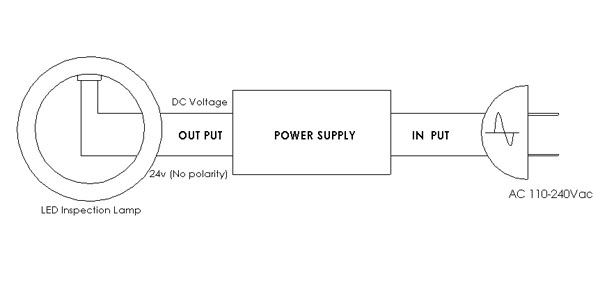

õԴʹ LED Inspection Lamp:
